KTNW-A Series Fully Automatic Non Woven Bag Machine

Feature:

This fully automatic non woven bag machine is suitable to use nonwoven fabrics to make a D cut bag, W cut bag, T-shirt bag, etc. It is a high efficient nonwoven bag machine production line.

Performance and Characteristics:

  • This machine uses a PLC touch screen control system.
  • Material feeding by stepping motor and with EPC system.
  • It has a length control system and an automatic counting system.
  • It has a sealing knife temperature control system.
  • It has a photo senor checking system.
  • It has an automatic flat bag banana punch system.
  • We can provide many types of different designs for sealing knives.
  • This machine uses an ultrasonic sealing system.

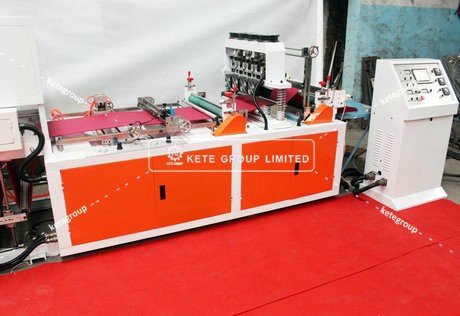

Non Woven Bag Machine

NonWoven Bag Sample

non woven d cut bag
non woven d cut bag
non woven t shirt bag
non woven t shirt bag

Non Woven Bag Machine Video

Machine Specification

Model

KTNW-A600

Material Thickness

30-120gsm

Raw Material Width

1250mm

Raw Material Diameter

800mm

Bag Making Speed

20-120pcs/min

D-cut Bag Width

100-800mm

D-cut Bag Height

200-580mm

D-cutting Bag Top Gusset

40-80mm

D-cutting Bag Bottom Gusset

50-100mm

D-cutting Hole Size

20x80mm

T-shirt Bag Width

200-450mm

T-shirt Bag Length

100-800mm

T-shirt Bag Side Gusset

50-100mm

Total Power

15kw

Machine Weight

3500kg

Machine Voltage

220v/ 380v

Machine Size

10500 x 2200 x 2100mm



Machine Functions

Unwind

Unwind

non woven bag machine Folding Unit

folding unit

Sealing Unit

Sealing Unit

Rewind

Rewind

Auto T shirt Bag Puncher

auto t shirt bag puncher

non woven bag machine control plate

Control Plate

Machine Certification

PAPER BAG MAKING MACHIEN CE CERTIFICATION
PAPER BAG MAKING MACHIEN ROHS CERTIFICATION
